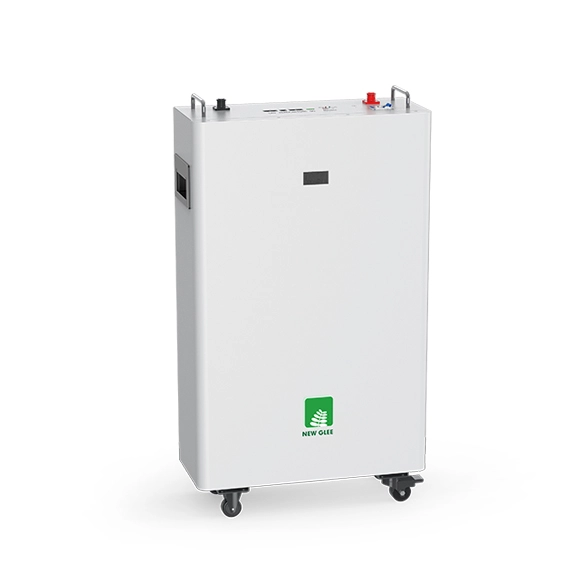

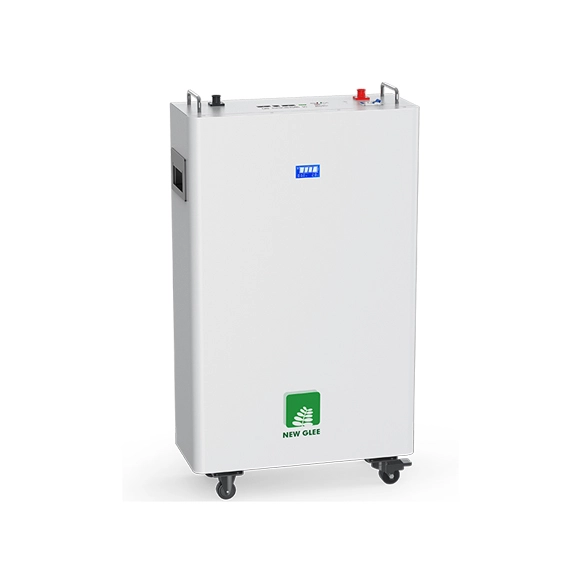

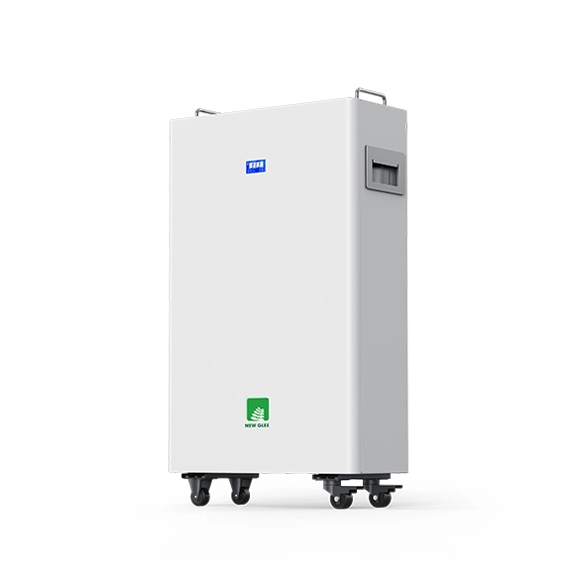

The NGLB-48300W is a 51.2V 16S LiFePO₄ wheeled battery with a 15kWh capacity, designed for scalable energy storage solutions. Featuring a 300Ah capacity and 51.2V nominal voltage, it delivers high power output (44.8–68.4kW) and supports rapid charging up to 150A. Its portable wheeled design enables easy mobility, while automatic address allocation simplifies parallel setups for capacities up to 240kWh. Built with IP20 protection, it operates reliably in temperatures from -20°C to 80°C and offers over 8,000 cycles at 80% depth of discharge. Ideal for industrial, commercial, or backup power applications, this battery combines durability, scalability, and advanced protocols for seamless integration.

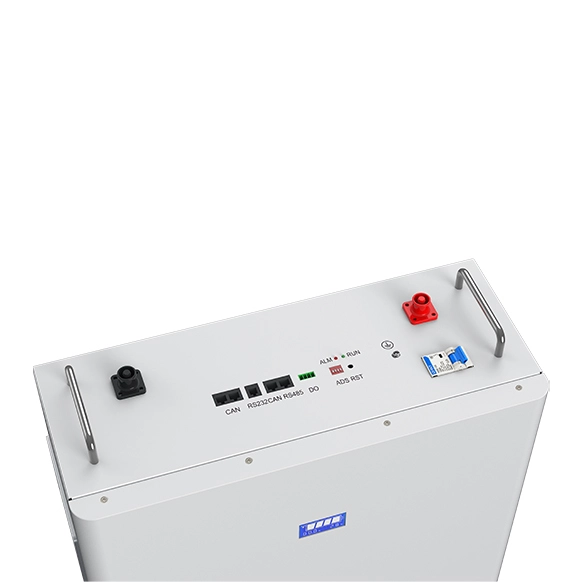

High-Terminal Design & Fast Installation: Elevated terminals ensure quick setup and secure connections, suitable for rapid deployment in energy storage systems.
Automatic Undervoltage Restart: Built-in protection mechanism reactivates the battery after low-voltage shutdown, enhancing reliability during power fluctuations.
Long Cycle Life & High Efficiency: Supports 8,000 charge/discharge cycles at 25°C with CC-CV charging, ensuring durability and stable performance over time.
Scalable Parallel Configuration: Up to 16 units can be connected in parallel, expanding total capacity to 240kWh for large-scale energy storage needs.
Wide Operating Temperature Range: Operates efficiently in -20°C to 80°C environments, adaptable to diverse climatic conditions.
IP20 Protection & Communication Protocols: Dust-resistant housing (IP20) and CAMRS486R5323 communication interface ensure compatibility with standard and custom systems.
| Nominal Energy (kWh) | 10.24 |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity (Ah) | 200 |
| IP Rating | IP 20 |
| Output Power (kW) | 7.68 |
| Voltage Range (V) | 44.8~58.4 |
| Charge Voltage(V) | 55.2-58.4 |
| Charge Current(A) | 100 |
| Discharge Current(A) | 150 |
| Charge Mode | CC-CV |
| Communication | CAN/RS485/RS232 |
| Charge Temperature | 0-55℃ |
| Discharge Temperature | -20-60℃ |
| Designed Life | 10+Years |
| Cycle Life | >6000(@25℃,80%DOD) |
| Weight (kg) | 92 |
