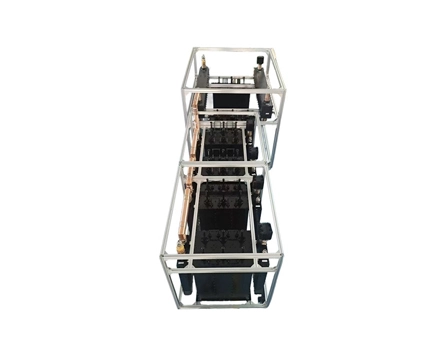

The NGT-CX-5-300 5x300W FM Full Bridge Combiner by Dongguan Newglee is a high-performance 5-way combiner designed for FM broadcasting (87-108MHz). Featuring a robust full bridge structure with a broadband port, it supports multi-frequency expansion and delivers up to 300W narrowband/500W broadband power handling. With low insertion loss (≤0.6dB), excellent isolation (≥30dB), and temperature stability (≤1.5kHz/℃), it ensures reliable signal integration in diverse environments (-10℃ to +55℃). Its compact, durable build integrates silver-plated brass connectors (7/16" and 1-5/8" SMS ports) and advanced filtering for optimal performance. Ideal for broadcast systems requiring efficient power combining and minimal signal degradation.
Constructed with high-quality materials including purple copper, silver-plated brass, and aluminum alloy for durability and performance.
Full bridge structure with a reserved broadband port, enabling easy multi-frequency expansion and integration.
Low insertion loss (≤0.6dB) and VSWR (≤1.1), ensuring efficient signal transmission and minimal reflection.
High isolation (≥30dB) between narrowband and broadband ports, reducing interference across channels.
Compact design with integrated filtering and temperature compensation (≤1.5kHz/℃) for stable operation in varied environments.
Supports high power input (300W narrowband, 500W broadband) and operates in temperatures from -10℃ to +55℃.
| Multiplexer structure | Full bridge structure, the 5-way combiner includes 5 bridge units and reserves a broadband port. |
| Power level | 300W |
| Frequency range | 87 - 108MHz |
| Working frequency | Determine based on actual user needs. |
| Narrowbandmaximuminput power | ≥ 350W |
| Narrowband standing wave ratio | ≤ 1.1 |
| Narrowband bandwidth | 600kHz |
| Narrowband insertion loss and out of band selectivity | Single 5-way combiner unit. |
| Narrowband insertion loss and out of band selectivity | f0≤ 0.6dB |
| f0±300kHz ≤ 0.65dB | |
| For each additional level of the multiplexer, itsinsertion loss increases by no more than 0.09dB. | |
| Broadband maximum input power | ≤500W |
| Broadband standing wave ratio | ≤ 1.1 |
| Isolation from narrowband to broadband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from broadband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from narrowband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Input port type(Up) | 7/16"(L29) female |
| Output porttype(Up) | 1-5/8" SMS |
| Temperature coefficient | ≤1.5kHz/C |
| Full power temperature rise | ≤12℃ |
| Workenvironment | Temperature:-10℃-+55℃,Relative humidity:≤90%,Atmospheric pressure:86kPa-106kPa. |
