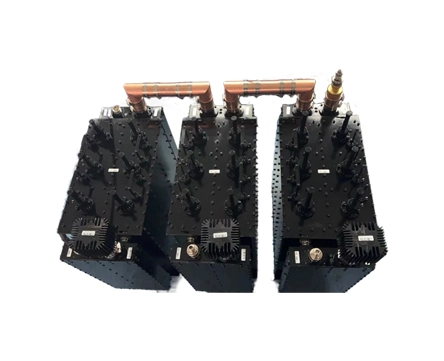

The NGT-CX-3-2000 3x2kW FM Full Bridge Combiner by Dongguan Newglee is engineered for high-power FM broadcasting systems. It combines three 2kW channels into a unified output with a full bridge architecture, ensuring low insertion loss (≤0.6dB) and robust isolation (≥30dB) between ports. Designed for 87–108MHz operation, it features integrated filtering, a scalable broadband port, and advanced temperature compensation to maintain stability in harsh environments (-10℃ to +55℃). Its compact, silver-plated brass construction minimizes signal degradation, making it ideal for space-constrained broadcast facilities requiring reliable, high-efficiency performance.
Constructed with premium materials including purple copper, silver-plated brass, and aluminum alloy for durability and efficient signal transmission.
Integrated filtering ensures minimal interference and optimized performance across the 87–108MHz frequency range.
Full bridge design with a reserved broadband port for flexible multi-frequency expansion and system scalability.
Exceptional thermal management: ≤12℃ temperature rise under full load and ≤1.5kHz/℃ frequency drift compensation.
High isolation (≥30dB) between narrowband and broadband ports, even at 1MHz frequency intervals.
Compact, low-loss structure with VSWR ≤1.1 and insertion loss ≤0.65dB at ±300kHz offsets.
| Multiplexer structure | Full bridge structure, the 3-way combiner includes 3 bridge units and reserves a broadband port. |
| Power level | 2kW |
| Frequency range | 87 - 108MHz |
| Working frequency | Determine based on actual user needs. |
| Narrowbandmaximuminput power | ≥ 2.5kW |
| Narrowband standing wave ratio | ≤ 1.1 |
| Narrowband bandwidth | 600kHz |
| Narrowband insertion loss and out of band selectivity | Single 3-way combiner unit. |
| Narrowband insertion loss and out of band selectivity | f0≤ 0.6dB |
| f0±300kHz ≤ 0.65dB | |
| For each additional level of the multiplexer, itsinsertion loss increases by no more than 0.09dB. | |
| Broadband maximum input power | ≤ 2.5kW |
| Broadband standing wave ratio | ≤ 1.1 |
| Isolation from narrowband to broadband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from broadband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from narrowband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Input porttype(Up) | 1-5/8" SMS |
| Output port type (Up) | 1-5/8" SMS |
| Temperature coefficient | ≤1.5kHz/℃ |
| Full power temperature rise | ≤12℃ |
| Workenvironment | Temperature:-10℃-+55℃,Relative humidity:≤90% Atmospheric pressure:86kPa-106kPa. |
