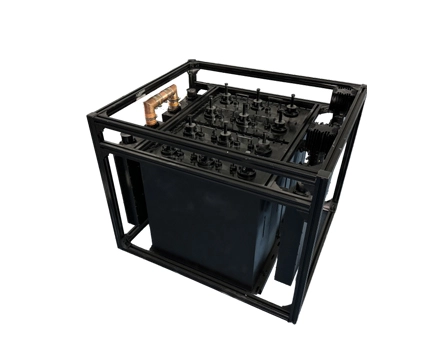

The NGT-CX-2-1000 2x1kW FM Full Bridge Combiner is a high-performance solution for FM broadcasting systems, operating within 87–108MHz. It combines two 1kW inputs with low insertion loss (≤0.65dB) and high channel isolation (≥30dB), ensuring efficient signal transmission. Built with premium materials and a compact full-bridge structure, it supports seamless expansion via a reserved broadband port. Advanced thermal compensation and a wide operating temperature range (-10°C to +55°C) guarantee reliability in diverse environments. Ideal for broadcasters requiring scalable, low-loss signal combining with robust durability.
High-Quality Materials: Constructed with purple copper, silver-plated brass, and durable aluminum alloy, ensuring superior conductivity and longevity.
Low Loss & High Isolation: Features ≤0.65dB insertion loss, ≤1.09 VSWR, and ≥30dB isolation between channels for minimal signal degradation.
Expandable Design: Full-bridge structure with a reserved broadband port, enabling easy multi-frequency expansion and system scalability.
Robust Thermal Management: Excellent temperature compensation (≤1.5kHz/°C) and ≤12°C full-power temperature rise for stable performance.
Compact & Integrated: Space-saving design with integrated filtering, optimized for high-power FM broadcasting applications.
| Technical Specifications | |
| Multiplexer structure | Full bridge structure, the 2-way combiner includes 2 bridge units and reserves a broadband port. |
| Power level | 1kW |
| Frequency range | 87 - 108MHz |
| Working frequency | Determine based on actual user needs. |
| Narrowbandmaximuminput power | ≥ 1.2kW |
| Narrowband standing wave ratio | ≤ 1.09 |
| Narrowband bandwidth | 600kHz |
| Narrowband insertion loss and out of band selectivity | Single 2-way combiner unit. |
| Narrowband insertion loss and out of band selectivity | f0≤ 0.6dB |
| f0±300kHz ≤ 0.65dB | |
| For each additional level of the multiplexer, itsinsertion loss increases by no more than 0.09dB. | |
| Broadband maximum input power | ≤ 1.2kW |
| Broadband standing wave ratio | ≤ 1.09 |
| Isolation from narrowband to broadband | ≥ 31dB(Frequency intervalmore than 1MHz) |
| Isolation from broadband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Isolation from narrowband to narrowband | ≥ 30dB(Frequency intervalmore than 1MHz) |
| Input port type | 7/16" (L29)female |
| Output port type (Up) | 1-5/8" SMS |
| Temperature coefficie | ≤ 1.5kHz/℃ |
| Full powertemperature rise | ≤ 12℃ |
| Work environment | Temperature:-10℃- +55℃, Relative humidity: ≤ 90%, |
| Atmospheric pressure: 86kPa - 106kpa | |
