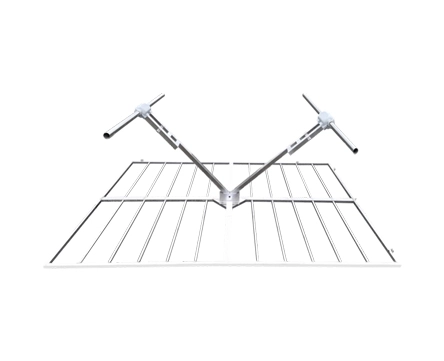

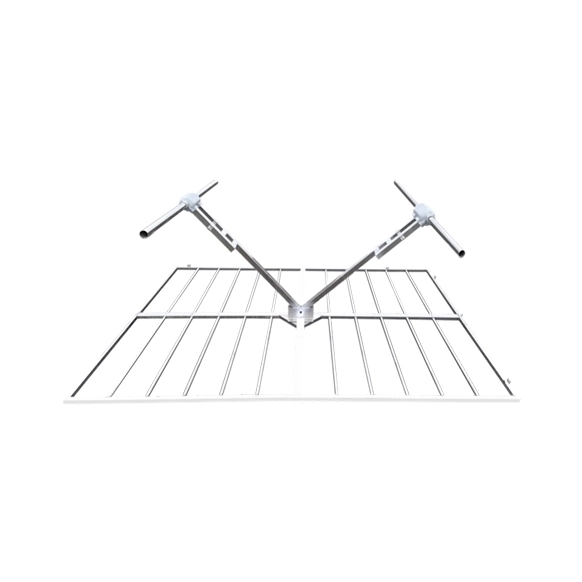

The NGT-TX-S01 FM Dual Dipole Antenna by Newglee is a high-performance broadcasting solution engineered for durability and efficiency. Featuring a stainless-steel structure with silver-plated conductors, it ensures optimal signal radiation and corrosion resistance. Its modular 4-layer design supports customizable gain configurations (up to 17.5dB), while robust wind resistance (200km/h) and a wide temperature tolerance (-40°C–60°C) suit extreme environments. Compatible with 6kW/10kW systems, it includes lightning protection and standardized interfaces (L27/F45/IF70/IF110) for seamless integration into FM transmission networks.
Wide Frequency Range: Operates efficiently within 87-108MHz, ideal for FM broadcasting systems with stable signal transmission.
Robust Construction: Radiating elements made of 304 stainless steel and silver-plated copper for corrosion resistance and durability.
High Wind Resistance: Designed to withstand extreme wind speeds up to 200km/h, ensuring reliability in harsh environments.
Modular Design: Configurable in 4-layer, 4-side arrays with gain up to 17.5dB, adaptable for varying transmission needs.
Lightning Protection: Direct grounding system enhances safety and minimizes damage risks during electrical storms.
Temperature Resilience: Functions seamlessly in ambient temperatures ranging from -40°C to 60°C.
| Array Parameters | |||||
| Layer | Phase | Gain(dB) | Layer | Phase | Gain(dB) |
| 2 | 1 | 11.5 | 6 | 1 | 16.3 |
| 2 | 8.5 | 2 | 13.3 | ||
| 3 | 6.7 | 3 | 11.5 | ||
| 4 | 5.5 | 4 | 10.3 | ||
| 4 | 1 | 13.5 | 8 | 1 | 17.5 |
| 2 | 10.5 | 2 | 14.5 | ||
| 3 | 9.7 | 3 | 12.7 | ||
| 4 | 8.5 | 4 | 11.5 | ||
| Electrical performance | |
| Frequency range | 87- 108MHz |
| Characteristic impedance | 50Ω |
| Gain | 7.8dB(Single element) |
| Polarization | Vertical or horizontal polarization |
| Standing wave ratio(SWR) | < 1.1 (Specify channel) |
| Maximum power handling | 0.1- 20kW(Singlephase) |
| Input interface | L27/IF45/IF70/IF110 |
| Lightning protection | Directly grounded |
| Ambient temperature | -40- 60℃ |
| Mechanical performance | |
| Antenna material | Radiating element: 304 stainless steel inner conductor with silver-plated copper. |
| Wind resistance | 200km/h |
| Dimensions | 2500*1700*1100mm |
| Weight | 35kg (Single element) |
| Pole diameter | Ø50mm-Ø110mm |
